【适用范围】

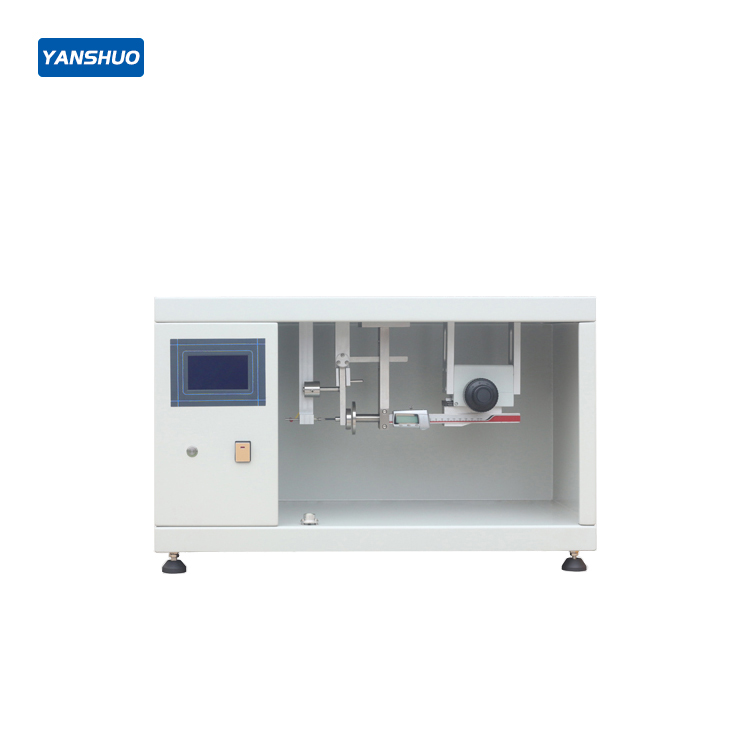

Suitable for determining the thickness of various non-woven fabrics under specific pressure. It can be used by non-woven fabric manufacturers, inspection departments and scientific research institutions. A balance-type non-woven fabric thickness tester is adopted for samples with a thickness of less than 20mm.

【相关标准】

GB/T 24218.2-2009 Textiles - Test methods for nonwovens - Part 2: Determination of thicknessISO 9073-2

[Technical Parameters]

1．Pressure foot area: 2500mm²;

2．Timing device: Touch screen;

3．Equipped with a sample clamping device that can vertically suspend the sample between the pressure foot and the reference plate;

4．Pressure provided by toggle lever: 0.02kPa;

5．Balance weight: (2.05±0.05)g;

6．Pressure screw: Can continuously adjust the position of the pressure foot;

7．Pressure application time: 10s;

8．Balance reference monitoring: 0.01mm;

9．Measurement accuracy: 0.1mm;
