【适用范围】

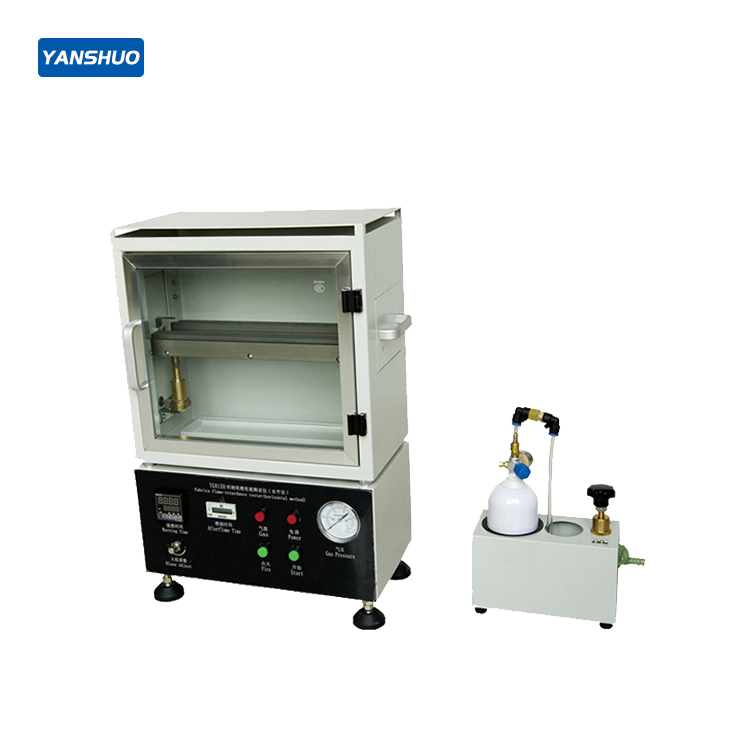

Used for determining the horizontal burning performance of various textile fabrics, expressed by the flame spread rate.

【相关标准】

FZ/T 01028; ASTM D5132; JIS D1201, etc.

【Technical Parameters】:

1．Ignition Timing: Presettable arbitrarily within 0.1s～999.9s; standard ignition time is 15s;

2．Ignition Nozzle Diameter: φ9.5mm;

3．Timing Range for Burning Time: 0.1s～999.9s;

4．Flame Height: Adjustable from 15mm～65mm; standard flame height is 38±2mm;

5．Gas Source: Industrial propane or butane gas; standard-equipped with safety gas cylinder;

6．Pressure After Decompression: Adjustable from 1KPa～18KPa;

7．Ignition Method: Automatic ignition;

8．Power Supply: AC 220V, 50HZ;

9．Power: 50W;

10．Overall Dimensions: 540×350×460mm;

11．Net Weight: 25kg.
